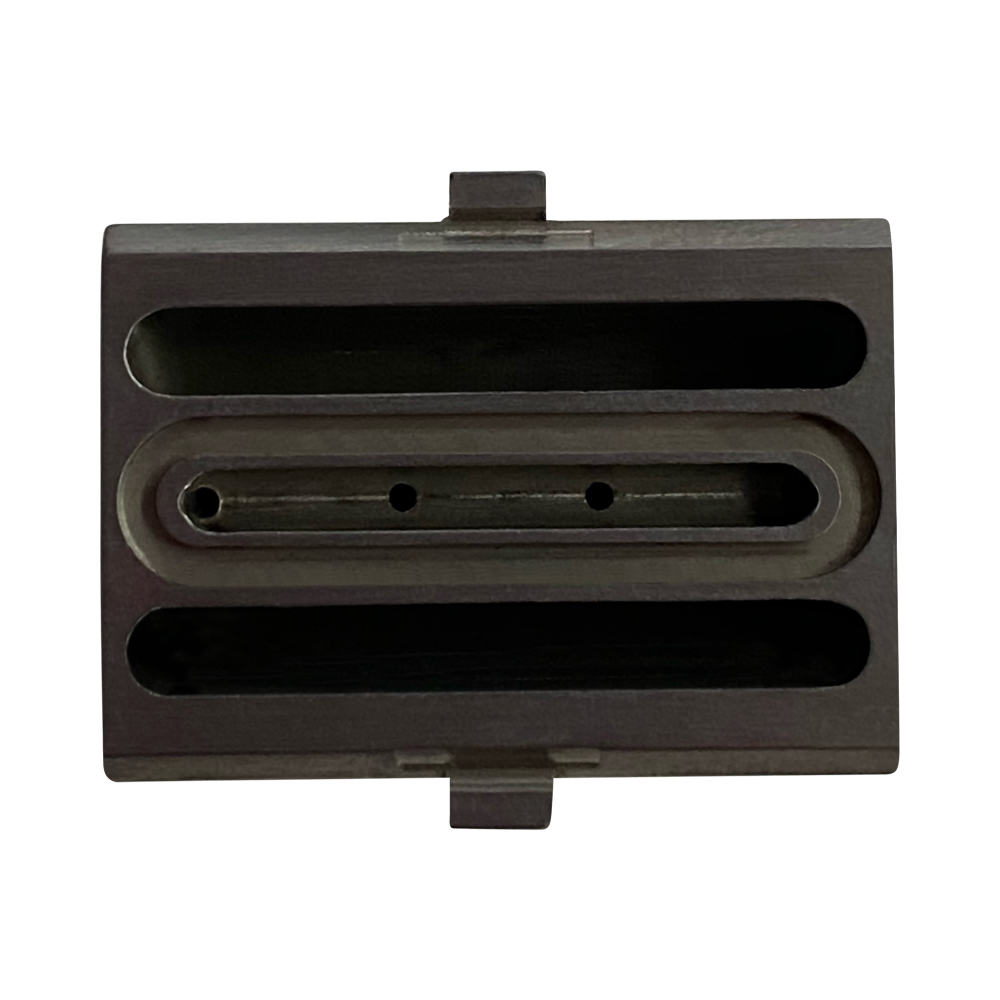

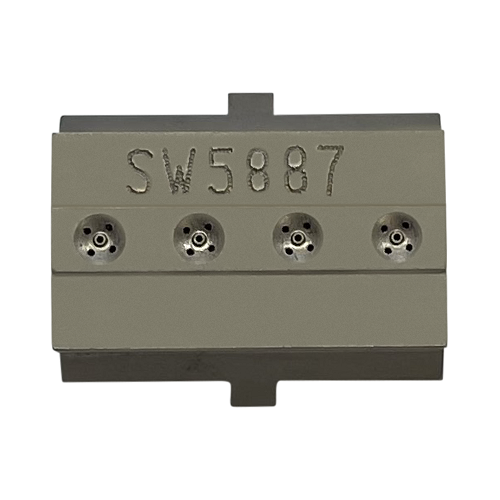

Replacement for Nordson 1035887 Summit Nozzle (Full Coverage) Stainless Steel

Replacement for Nordson 1035887 Summit Nozzle (Full Coverage) Stainless Steel

Looking for a direct replacement for Nordson 1035886? Glenmar Technology GM35886 Summit nozzle, ensures controlled fiberization, consistent spray patterns, and optimal adhesive distribution. Constructed from durable Stainless Steel, this nozzle delivers consistent, precise wide spray patterns for superior results in a wide range of applications.

GM35887: A fully compatible replacement for Nordson® 1035887:

• Direct Replacement for Nordson® 1035887: GM35887 offers a nozzle-to-substrate distance of 10 to 30 mm, providing versatility for both high-flow adhesive coating in rapid production and precise control in smaller applications—making it the ideal replacement for Nordson 1035887.

• Durable Stainless Steel Construction for Long-lasting Performance: The GM35887 is built with Stainless Steel and coated with a hard-release surface to resist corrosion and ensure high performance in demanding adhesive spray systems.

• Precision Control for Adhesive Flow and Fiber Size:  Available in 25mm and 22mm nozzle sizes, this nozzle allows for fine control over adhesive distribution, resulting in consistent, reliable bonds across various applications, including packaging, nonwoven fabrics, and more.

• Superior Edge Control: Delivers outstanding edge control with ±2 mm (±0.08 in.) accuracy, assuring a uniform and consistent spray pattern, preventing uneven coating along the edges of substrates.

• Flexible Nozzle to Substrate Distance: Operates efficiently within a nozzle-to-substrate distance of 10 to 30 mm (0.38 to 1.2 in.), with 20 mm being the recommended distance, providing flexibility for different application needs.

• High Hydraulic Flow: Capable of handling up to 100 grams per minute per nozzle at 10,000 centipoise, confirming efficient material flow even with high-viscosity adhesives.

• Reliable Add-on Weight: Supports reliable adhesion coverage, with up to 14 GSM at 300 m/min and 10 GSM at 400 m/min, ensuring quality results at varying production speeds.

• Production Speed Capability: Capable of operating at a broad range of speeds from 10 to 400 m/min (33 to 1312 ft/min), making it suitable for both low- and high-speed applications.

• Precise Adhesive Fiber Size: Optimized for adhesives with fiber sizes ranging from 50 to 100 microns, confirming constant  and accurate adhesive application for optimal coverage.

• Recommended Adhesive Viscosity: Best suited for adhesives with a viscosity range of 1,500 to 10,000 centipoise, ensuring smooth, stable spray application without clogging.

• Low Operational Costs: Energy-efficient design that minimizes air and hydraulic consumption, effectively reducing operational costs over time.

Performance Specifications:

• Operating Temperature: Designed to perform reliably within a temperature range of 70° to 205° C (160° to 400° F), confirming efficiency across various temperature conditions.

• Air Consumption: Consumes 0.50 to 1.0 scfm per nozzle, optimizing air usage for energy efficiency and reduced operational costs.

• Typical Air Pressure: Functions effectively with air pressures between 0.2 to 1 bar (3 to 15 psi), assuring consistent spray performance.

• Working Hydraulic Pressure:
  Capable of handling hydraulic pressures from 13.8 to 55.2 bar (200 to 800 psi), providing stable operation under various working conditions.

• Maximum Hydraulic Pressure: Withstands up to 89.6 bar (1300 psi), suitable for high-pressure applications without compromising performance.

• Adhesive Flow: Delivers 2.5 to 25 grams per minute per orifice, allowing for flexible adhesive application rates to suit project requirements.

Additional Benefits:

• Produce High Bond Strength at Low Add-on Rates: Capable of producing high bond strength with minimal adhesive application, making it ideal for both continuous and intermittent operations.

• Reduce Heat Distortion on Thinner Materials: Designed to minimize heat distortion, making it suitable for bonding thinner materials without compromising their integrity.

• Leak-Free Operation with Serviceable, Surface-Mounted Elastomeric Seals: Ensures reliable, leak-free operation, with elastomeric seals that are serviceable and mounted on the surface for easy maintenance.

Why Choose GM35887?

Built with strict quality standards, GM35887 delivers reliable performance and seamless compatibility with Nordson 1035887. Order now for fast shipping!
