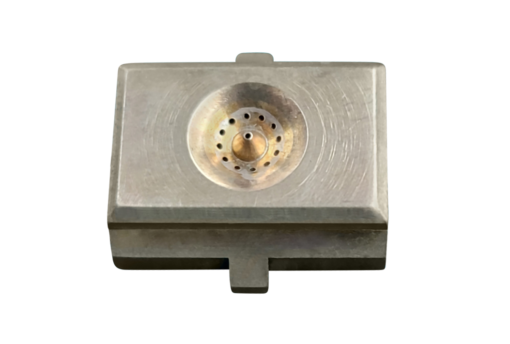

Replacement for Nordson 1053960 (12-Hole) Brass  CF Nozzle 0.012″

Looking for a direct replacement for Nordson 1053960? Glenmar Technology GM53960 CF Nozzle, offers excellent hot melt adhesive spray coverage, ensuring high bond strength even at low add-on rates. With a flexible design and stable pattern output, this nozzle is ideal for a wide range of applications, including nonwovens, packaging, and product assembly. Featuring smooth air orifices, it evenly distributes air across the pattern, enhancing adhesive stability and resulting in stronger, more reliable bonds.

GM53960: A fully compatible replacement for Nordson® 1053960:

• Direct Replacement for Nordson® 1053960: Engineered as a direct replacement for Nordson® 1053960 Nozzle, ensuring seamless integration into existing spray systems for hassle-free setup.

• Durable Brass Construction: Made from brass with a hard release coating for superior durability and corrosion resistance, ensuring long-lasting performance in demanding environments.

• Precise Nozzle Orifice Sizes: Offers Orifice Diameter  (0.012 in.), providing fine control over material flow and allowing for uniform application.

• Superior Edge Control: Delivers ±4 mm (±0.16 in.) edge control, allowing for a uniform and consistent spray pattern along the edges of substrates, preventing uneven coating.

• Flexible Nozzle to Substrate Distance: Operates efficiently within a nozzle-to-substrate distance of 12 to 75 mm (0.5 to 3.0 in.), providing flexibility for different application requirements.

• High Hydraulic Flow: Handles 100 grams per minute per nozzle at 10,000 centipoise, ensuring efficient material flow even at high viscosities.

• Reliable Add-on Weight: Supports 30 GSM at 150 m/min and 15 GSM at 300 m/min, ensuring consistent adhesion coverage, even at varying production speeds.

• Versatile Production Speed: Capable of operating at a wide range of speeds from 10 to 350 m/min (33 to 1148 ft/min), making it suitable for both low- and high-speed applications.

• Precise Adhesive Fiber Size: Optimized for use with adhesive fiber sizes ranging from 50 to 200 microns, ensuring consistent adhesive application for precise coverage.

• Recommended Adhesive Viscosity: Best suited for adhesives with a viscosity of 4,000 to 8,000 centipoise, ensuring smooth and consistent spray application without clogging.

• Low Operational Costs: Energy-efficient design minimizes air and hydraulic consumption, reducing overall operational expenses.

• Flexible Design and Pattern Stability: GM53960 nozzle ensures stable spray patterns across various speeds, preventing distortion and maintaining consistent adhesive application. Its flexible design adapts to different environments without compromising performance.

Performance Specifications of  1053960:

• Operating Temperature: Designed to perform efficiently within the range of 70° to 205° C (160° to 400° F), ensuring reliability in varying temperature conditions.

• Air Consumption: Consumes 0.25 to 1.0 scfm per nozzle, optimizing air usage for energy efficiency and reduced operational costs.

• Typical Air Pressure: Functions effectively with air pressure between 0.3 to 2 bar (5 to 30 psi), providing consistent spray performance.

• Working Hydraulic Pressure: Handles 13.8 to 55.2 bar (200 to 800 psi) for stable operation and consistent performance under various working conditions.

• Maximum Hydraulic Pressure: Can withstand up to 89.6 bar (1300 psi) for high-pressure applications without compromising performance.

• Adhesive Flow: Delivers 10 to 250 grams per minute per nozzle, allowing for flexible adhesive application rates depending on project requirements.

Additional Benefits:

• Produce High Bond Strength at Low Add-on Rates: Capable of achieving high bond strength with minimal adhesive application, making it perfect for both continuous and intermittent processes.


• Support Numerous Applications: Designed to cater to a wide range of applications, offering versatility and adaptability for various industrial needs.


• Create Uniform and Stable High-Frequency Patterns: Ensures consistent and stable high-frequency patterns for reliable performance across different applications.

Why Choose GM53960?

Built with strict quality standards, GM53960 delivers reliable performance and seamless compatibility with Nordson 1053960. Order now for fast shipping!
